Laser distance meter

Laser distance meter

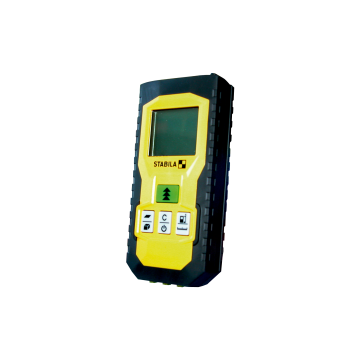

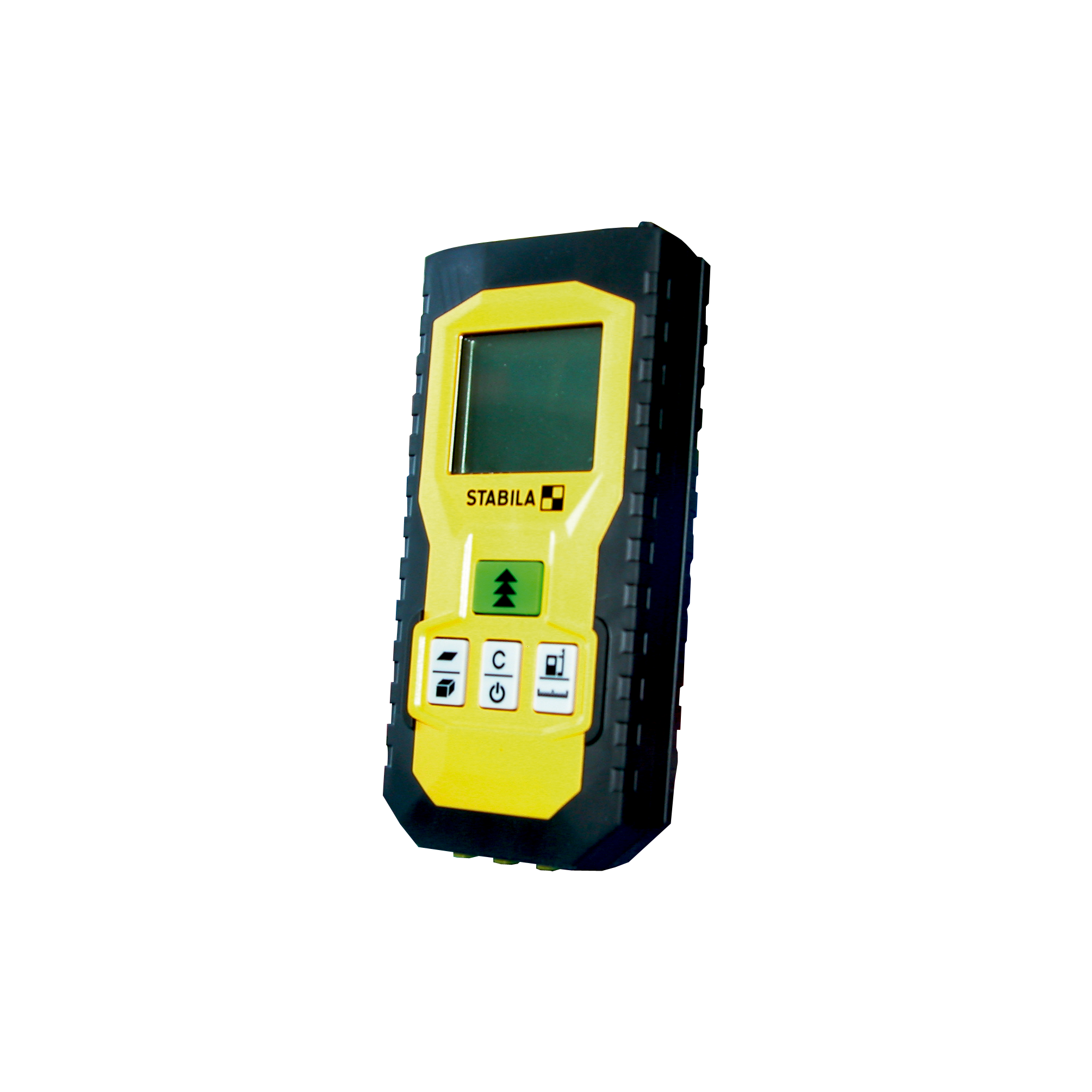

Laser distance meter LD 320

Art.no.: 142404
Sales unit: 1 Pieces
Weight/item: 0.430 kg

Field of application

  • Ideal laser distance meter for indoor use
  • Provided with all basic functions (length, area, volume, tracking permanent measure, Pythagoras with two meter points)

Advantages

  • High measurement accuracy, measure up to 60 m with laser precision
  • Large figures and backlit display
  • Calculates distance values within one second
  • Different measure references on the frontside and backside of the housing
  • Belt bag for comfortable transportation
  • Robust structure with resistant box for challenging use on construction sites
  • Simple, self-explanatory handling
  • Secure and fast measuring on hard to reach locations
Type
LD 320
Basic data text
Laser distance meter LD 320
Protection class
IP 40
Length
100 mm
Laser class
635 nm, class 2
eCl@ss 11.1
21-16-01-06
Width
54 mm
Customs tariff number
90151000
Scope of supply
Belt bag, alkaline batteries
Measuring functions
Single and permanent measurement
Computational functions
Length, area, volume, tracking (permanent measure), Pythagoras with 2 and 3 meter points
Life cycle of alkaline batteries
up to 3,000 measurements
eCl@ss 7.1
21-16-01-06
Min. measuring distance
0.05 m
Max. measuring distance
60 m
Depth
30 mm
Measuring accuracy at 10 m
±1.5 mm
Further technical details can be found in the data sheet.
