PHONOLYT® vibration control system

The right product for every installation task

PHONOLYT® products decouple all potential noise transmission to the main structure. The PHONOLYT® system has the right products for every installation task: such as fixed anchor points, vibration controlled construction for ceiling, wall or floor mounting.

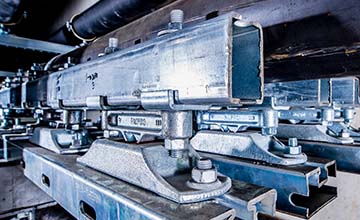

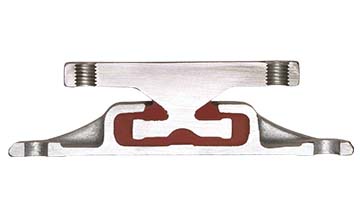

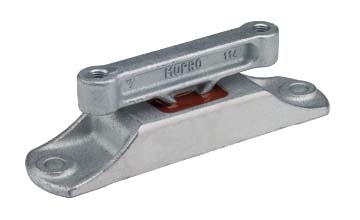

PHONOLYT® vibration decoupler

The PHONOLYT® decoupler is the perfect system component for vibration controlled anchor points and is approved to diverse installation positions.

Your advantages

High level of static loading-bearing capacity
Fire-approval: a high degree of safety even in case of fire due to cast-steel vibration-control capsule
Reduces the structure-borne noise by up to 40 dB(A) due to the vulcanised-in MÜPROLAN

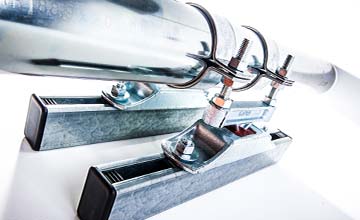

Can be used to fasten pipes from ⅜" to DN 1500 and in combination with pipe clamps

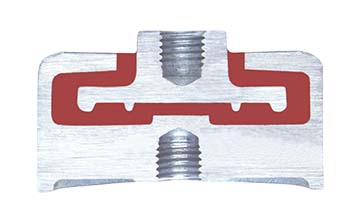

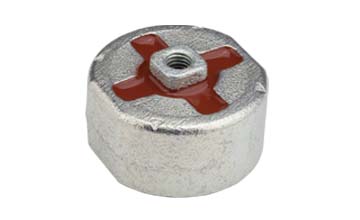

PHONOLYT® button

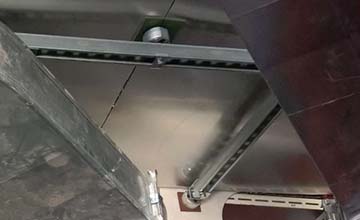

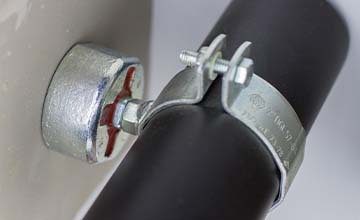

The PHONOLYT® button is an effective, high performance anchor point attachment that is installed in numerous ships. It is used not only for noise-damping installation of devices or constructions of support channels suitable for ceiling, wall or floor mounting, but also as a decoupling element for equipment in the ship’s kitchen.

Your advantages

Time-saving fitting due to only one connection thread on each side
Excellent load-bearing capacity of 1.5 kN in all directions
Outstanding structure-borne noise reduction by up to 30 dB(A) due to the vulcanised-in MÜPROLAN
Security provided by undercut vulcanised-in anchor
