System substructure with acoustic decoupling for cruise ships

Fastening solutions on cruise ships

Requirements

  • Noise insulation to be fitted for the deck structure in all public areas (disco, cinema, bars, etc.) located below guest cabins.

  • No individual brackets to be installed; as few holes as possible are to be made in the insulation. Sound bridges needed to be avoided.

  • All pipelines and suspended ceilings had to be fixed to the deck structure with structure-borne noise damping.

Implementation

  • The MPR-Support channels attached in combination with the Phonolyt Button created a stable system substructure with acoustic decoupling, which could be used for mounting all systems in these areas.

  • We provided support for the construction with assembly diagrams, weld/support channel layout plans and bills of materials.

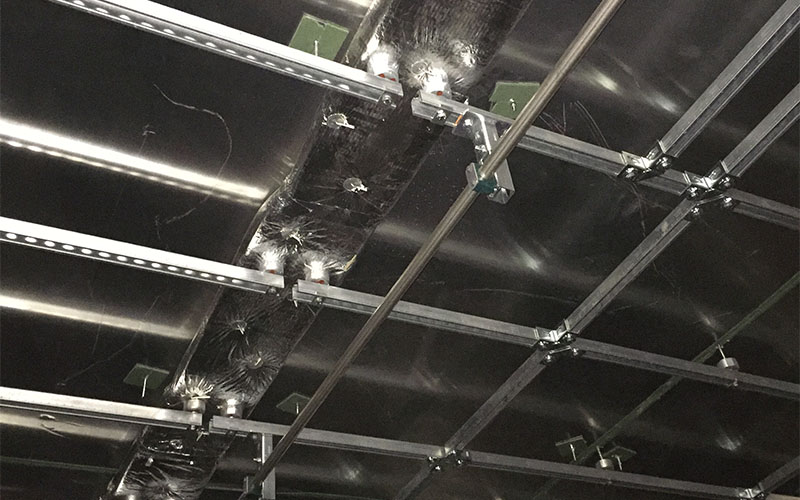

800x500-Maritim-Referenzen-Systemunterbau-auf-Kreuzfahrtschiffen (1).jpg

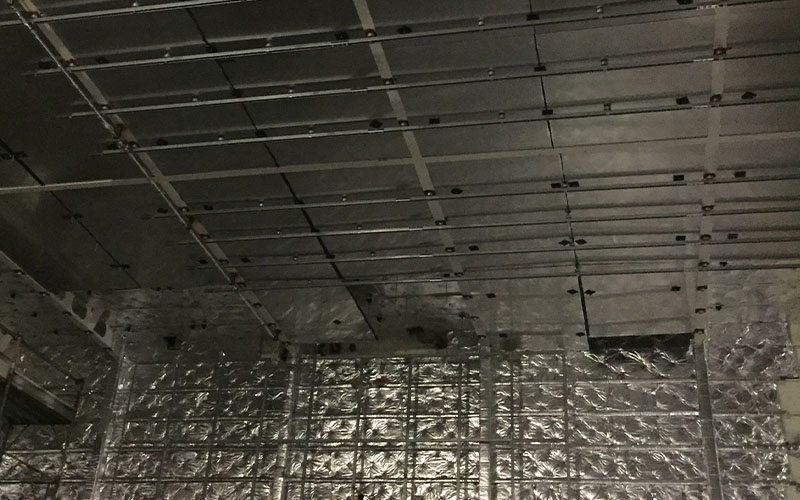

800x500-Maritim-Referenzen-Systemunterbau-auf-Kreuzfahrtschiffen (2).jpg

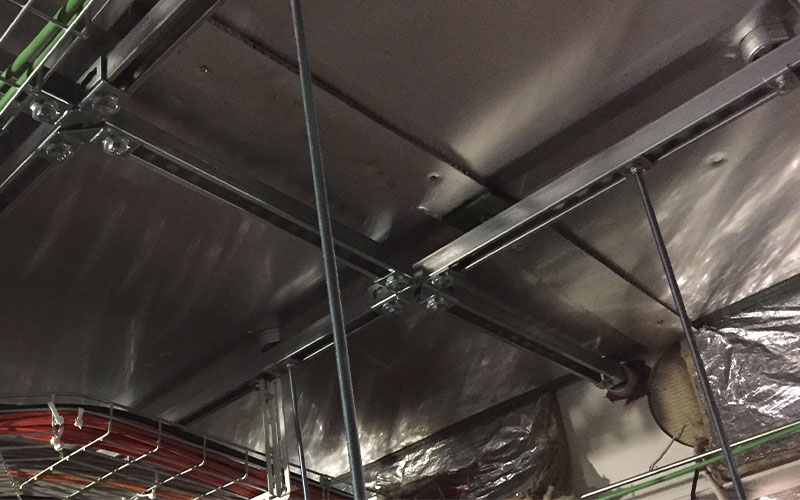

800x500-Maritim-Referenzen-Systemunterbau-auf-Kreuzfahrtschiffen (3).jpg
